100% Original Autel MaxiTPMS TS508 Diagnostic and Service Tool

100% Original Autel MaxiTPMS TS508 Diagnostic and Service Tool

0 reviews 0 sold. Only 1000 remain
Looking for help? or Get More Discount
Please contact WhatsApp: +1 850 888 8336
Product Code: ATSTAD123
Availability: In Stock
Weight: 2kg
Size (LxWxH): 33cm x 26cm x 10cm
Viewed 6955 times

Product Description

Autel MaxiTPMS TS508 Diagnostic and Service Tool

TS508 Features:

1. Original Autel Brand Tool
2. Free Update Online on Autel Official website
3. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work.
4. Support language: English, French,Spanish.


MaxiTPMS TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.


1. Test KeyFob Functionality
2. Read/Erase TPMS Codes
3. Activate/Test/Read TPMS Sensors
4. Display Vehicle-Specific Relearn Procedures
5. At-a-Glance Status Screen Diagnoses System
6. Simplified Interface with Quick & Advance Modes
7. Connect to TPMS module via OBDII Port to Relearn Sensor IDs (often required by Asian vehicles)

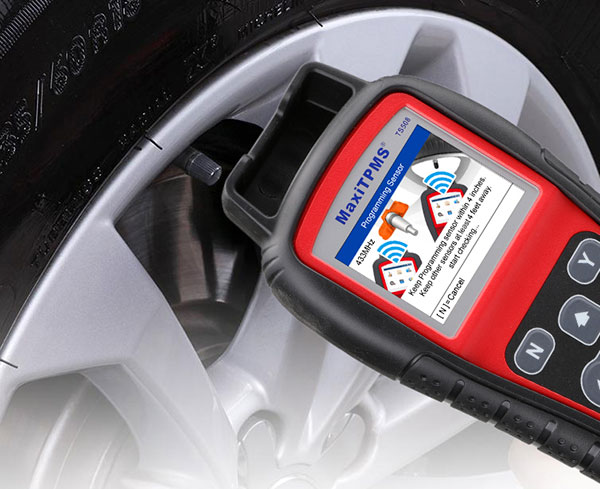

TS508 and Sensor Connection
TS508 Display

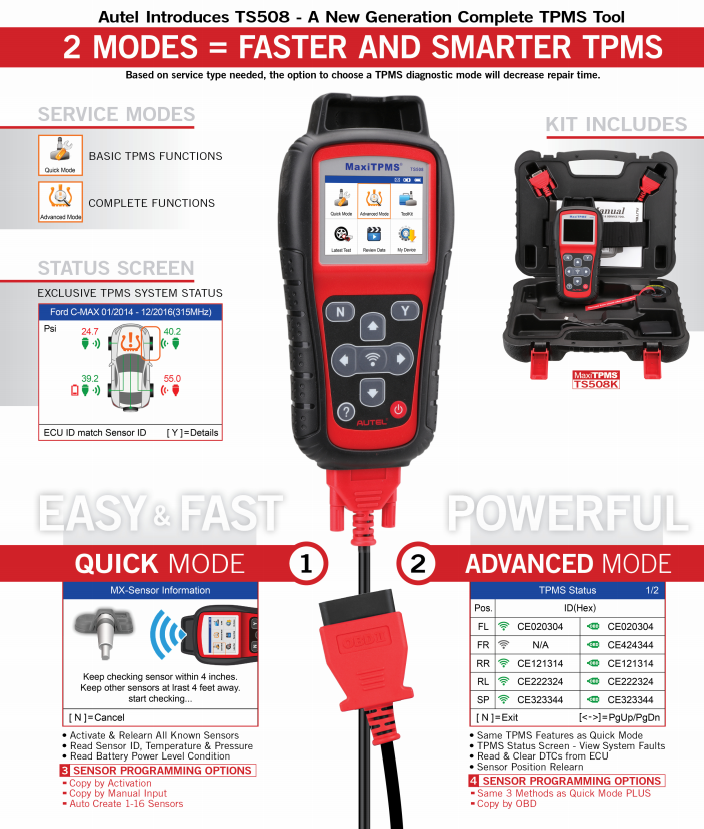

Two TPMS Service Modes

TS508 Two TPMS Service Modes

Quick Mode / Advanced Mode Comparison

TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.

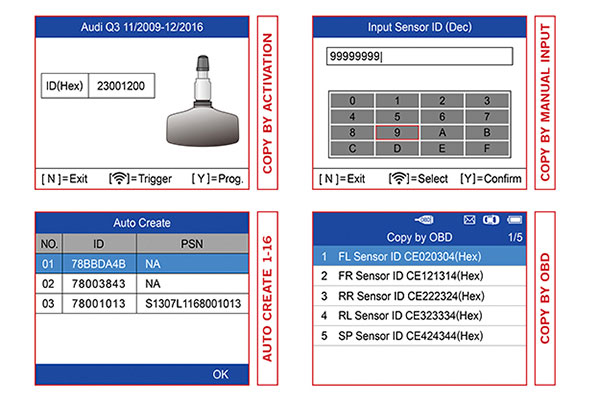

MaxiTpms TS508 Software Display

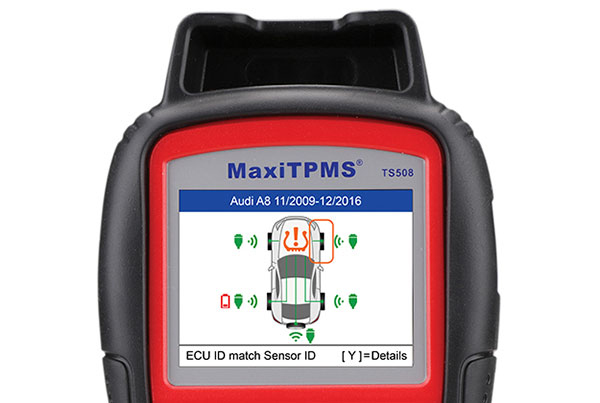

Exclusive TPMS Status Screen

1.Read ECU sensor ID;
2.Check sensor ID and ECU ID matching condition;
3.Read DTCs from ECU and erase DTCs;
4.View DTCs detail description;

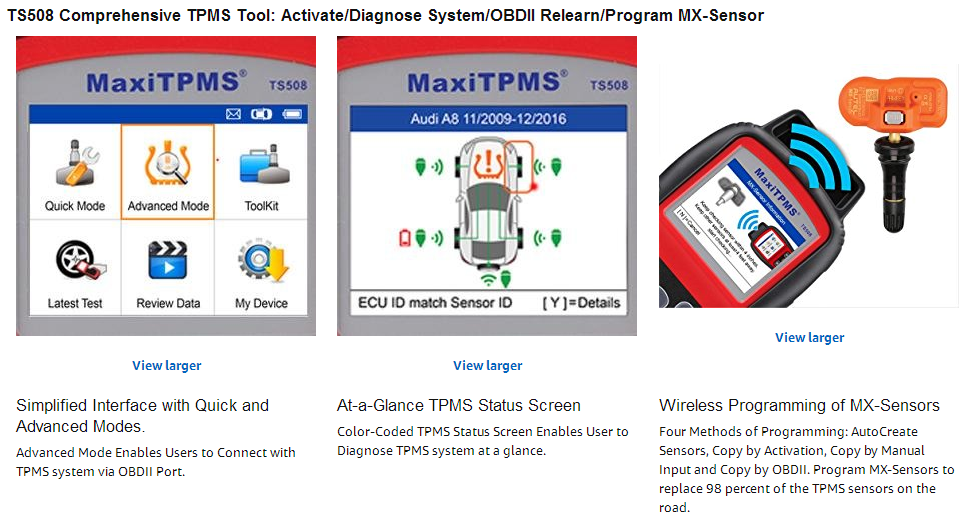

Autel MaxiTpms TS508 Display
TS508 Software Display


Display: TFT color display (320 x 240 dpi)
Power: 3.7 V Li-polymer battery; 3200 mAh
Operating Temp: 0°C to 50°C (32°F to 122°F)
Storage Temp: -20°C to 70°C (-4°F to 158°F)

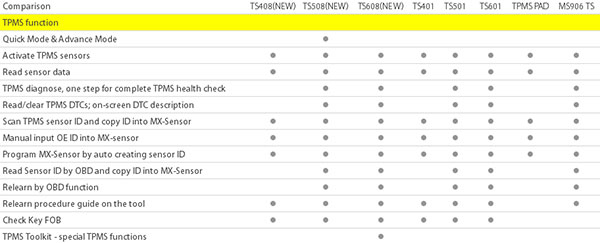

TS408 Comparision

Package includes:

1pc x OBD II cable
1pc x User manual
1pc x Carry case
1pc x USB cable
1pc x AC Adapter
1pc x Magnet
1pc x CD

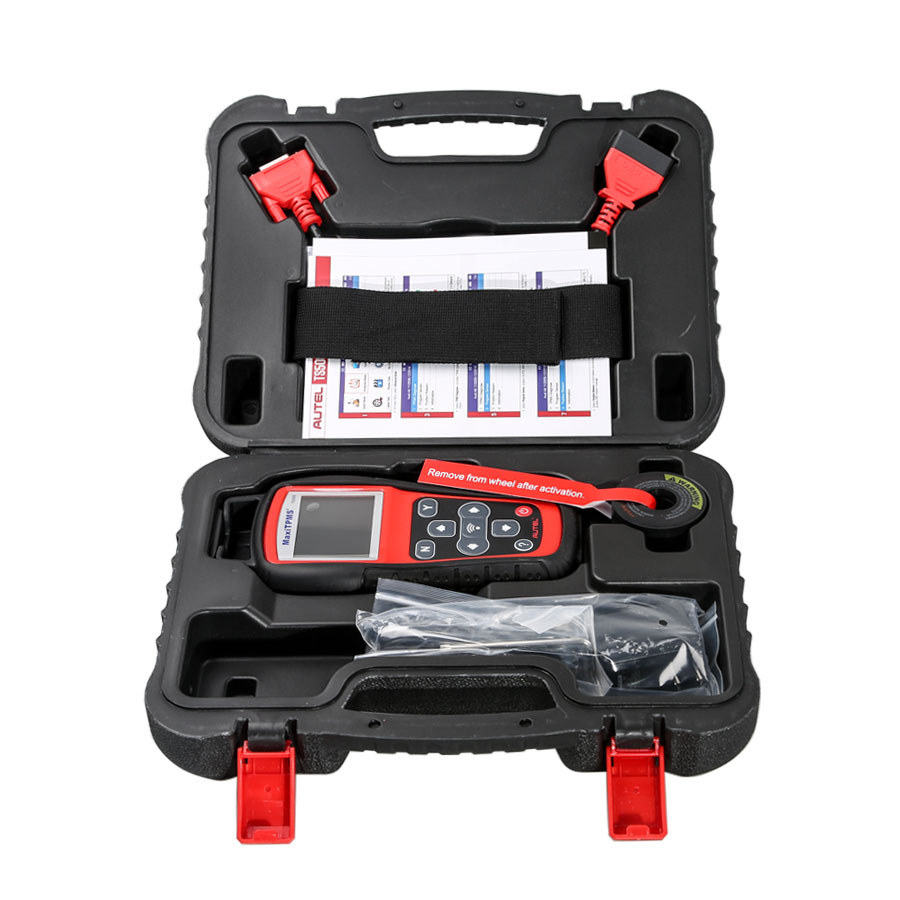

TS508 Package Display:
TS508 Package Display
